Facimton Optical Technology Inc.

Optical windows are used to allow optical radiation to pass from one environment to another without allowing other elements of these environments to mix. And it does not change the wavelength distribution of the beam,the transmitted wavefront, nor does it scatter any of the light out of the beam.

Our company offers windows with a variety of materials, including BK7, fused silica, float glass, Si, Ge, and so on. They are good quality, durable and strong. To select a window, material, transmission, scattering, wavefront distortion, parallelism, and resistance to environment should be considered.We produce kinds of window with different substrate for your selection:

                            1. BK7 Windows

                            2. Fused Sillica Windows

                            3. Float Glass Windows

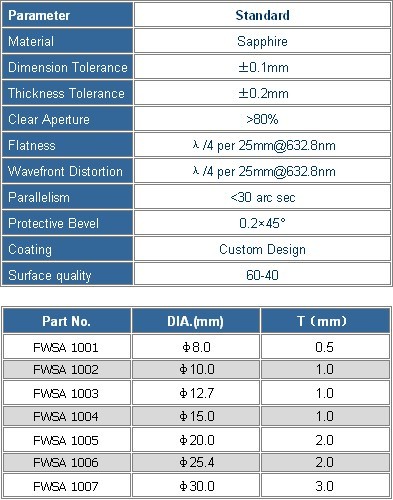

                            4. Sapphire Windows

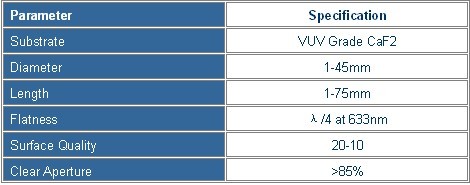

                            5. CaF2 Windows

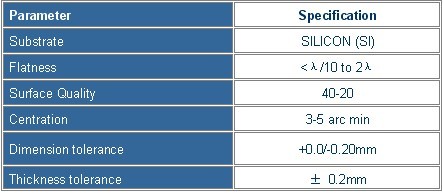

                           6. Si Windows

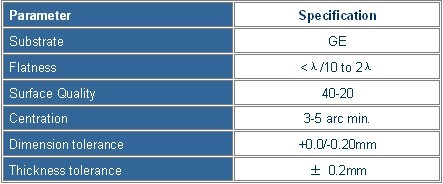

                            7. Ge Windows

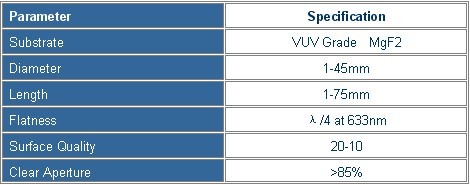

                            8. MgF2 Windows

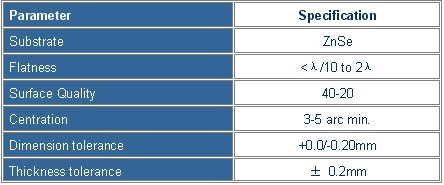

                            9.  ZnSe Windows



1. BK7 Windows:

* Other sizes and coating are available upon requirements.

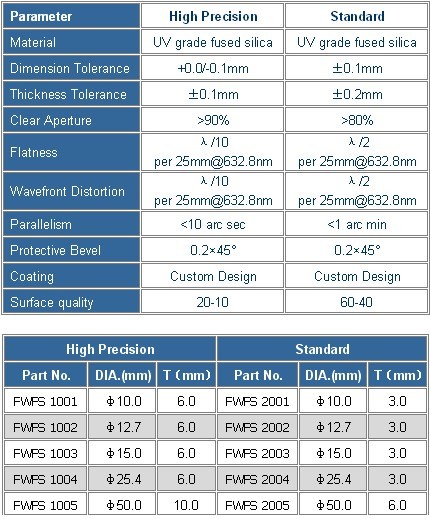

2. Fused Sillica Windows:

* Other sizes and coating are available upon requirements.

3. Float Glass Windows:

Parameter	Standard
Material	Float White Glass
Dimension Tolerance	+/-0.1mm
Thickness Tolerance	+/-0.2mm
Clear Aperture	>80%
Flatness	L/2 per 25mm@632.8nm
Wavefront Distortion	L/2 per 25mm@632.8nm
Parallelism	<30 arc sec
Protective Bevel	0.2x45deg
Coating	Custom Design
Surface quality	120-80
